Designed, developed and precision manufactured in the UK to the highest quality from 6061 T6 Aluminium, the B-G Racing Hub Stands Kit is the ultimate solution for vehicle set up and alignment.
This advanced and proven system replaces the vehicle wheel and tyre set, giving access to carry out a complete suspension and alignment set up without needing to lift the vehicle, and eliminating the need to roll the vehicle on and off scale pads to unload the suspension after adjustments. The changes occur in real time!
With B-G Racing Hub Stands, set up is faster and more precise than using a wheel and tyre set, with repeatable, accurate measurements instead of ever-changing figures caused by wheel and tyre variations.
Each base features a pair of high load, low resistance roller bearing wheels which allow the Hub Stands to respond with the vehicle suspension as changes are made. This keeps the suspension bind-free which in turn makes the adjustment process quick and easy, showing the results of your adjustments instantly.
The B-G Racing Hub Stands are height adjustable to suit different tyre diameters and can be supplied with a variety of multi-drilled plate to suit different vehicle bolt patterns. The interchangeable plates are available in a wide range of configurations including a selection of hubs with centre locking wheels and any custom application.
The B-G Racing Hub Stands are suitable for vehicles up to a weight of 2000kg (4400lbs).

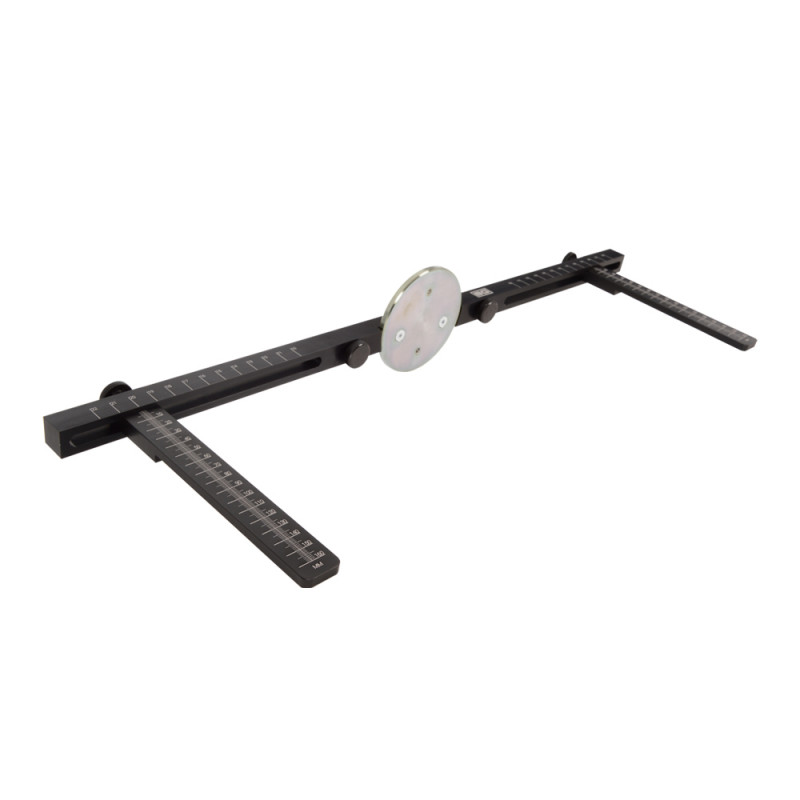

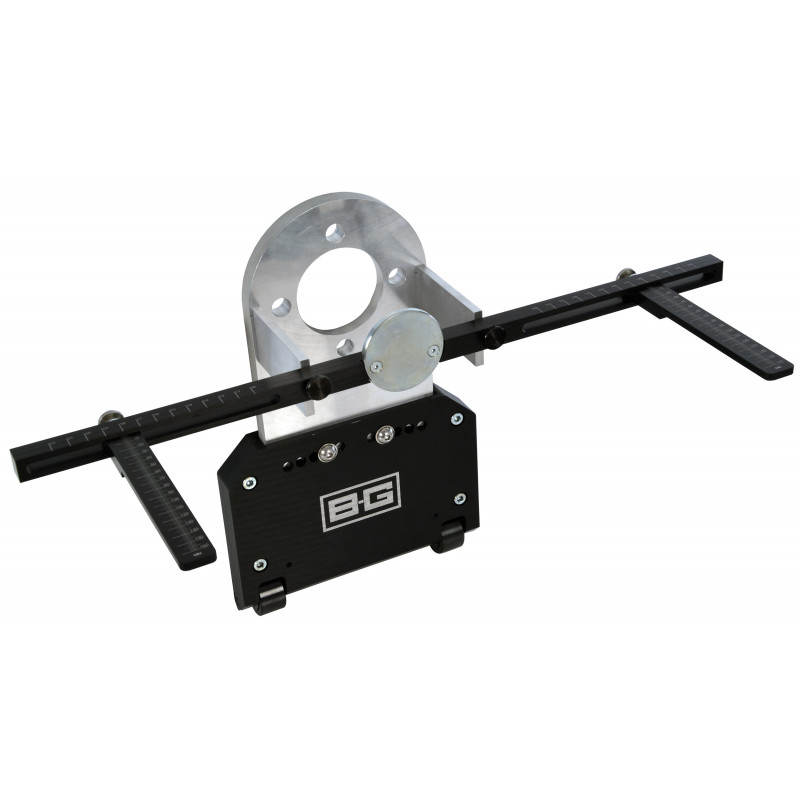

Each B-G Racing Hub Stands Pro Kit includes a set of four Toe Stick Pro, featuring a pair of sliding, laser-etched measurement scales that make reading the values quick and simple. The Pro Kit has been manufactured to work with wheel diameters ranging from 12” to 22” thanks to the sliding Measurement Scales that are held securely in place with a pair of knurled thumb screws included with the kit. Finished with a black anodised coating, the Toe Stick Pro Kit also includes a set of eight aluminium Toe Stubs to elevate the Toe Stick off the face of the hub to clear large brake calipers and grease caps and four circular Steel Plates which mount in the centre line of the hub for use with our range of magnetic camber measurement gauges.
A set of four stainless steel safety plates are also included in the kit which are used to prevent the vehicle from rolling off the scale pads.
To ensure your kit remains protected during storage and transportation, the B-G Racing Hub Stands Pro Kit also includes a bespoke Flight Case to securely carry all parts. The Flight Case is produced from Birch Ply & Aluminium and it is fitted with two fixed and two fully rotating locking and braking castor wheels for ease of transport, and two recessed handles for lifting.
If you are not sure which application you need for your vehicle, please contact us via phone or email and we will be happy to discuss the options available.

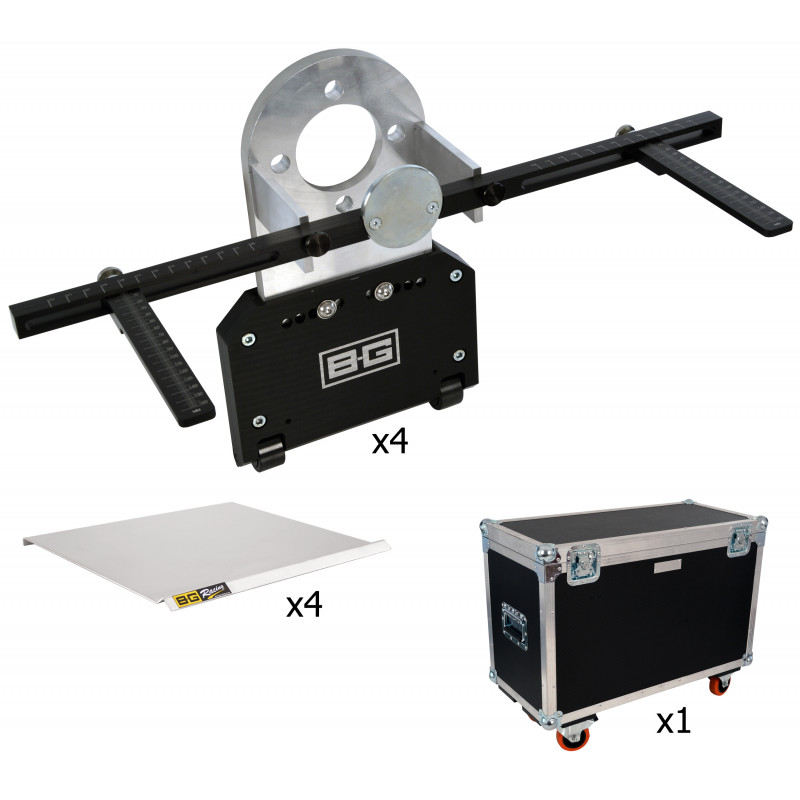

|Kit Includes||- Four machined aluminium base assemblies - Four hub plates - Four Toe Stick Pro assemblies - Four stainless steel safety plates - One heavy-duty flight case with castor wheels.|
|Nett Weight||66.00kg / 145.20lbs|
|Loading Capacity||2000kg - 4400lbs|
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not affect your statutory rights.
